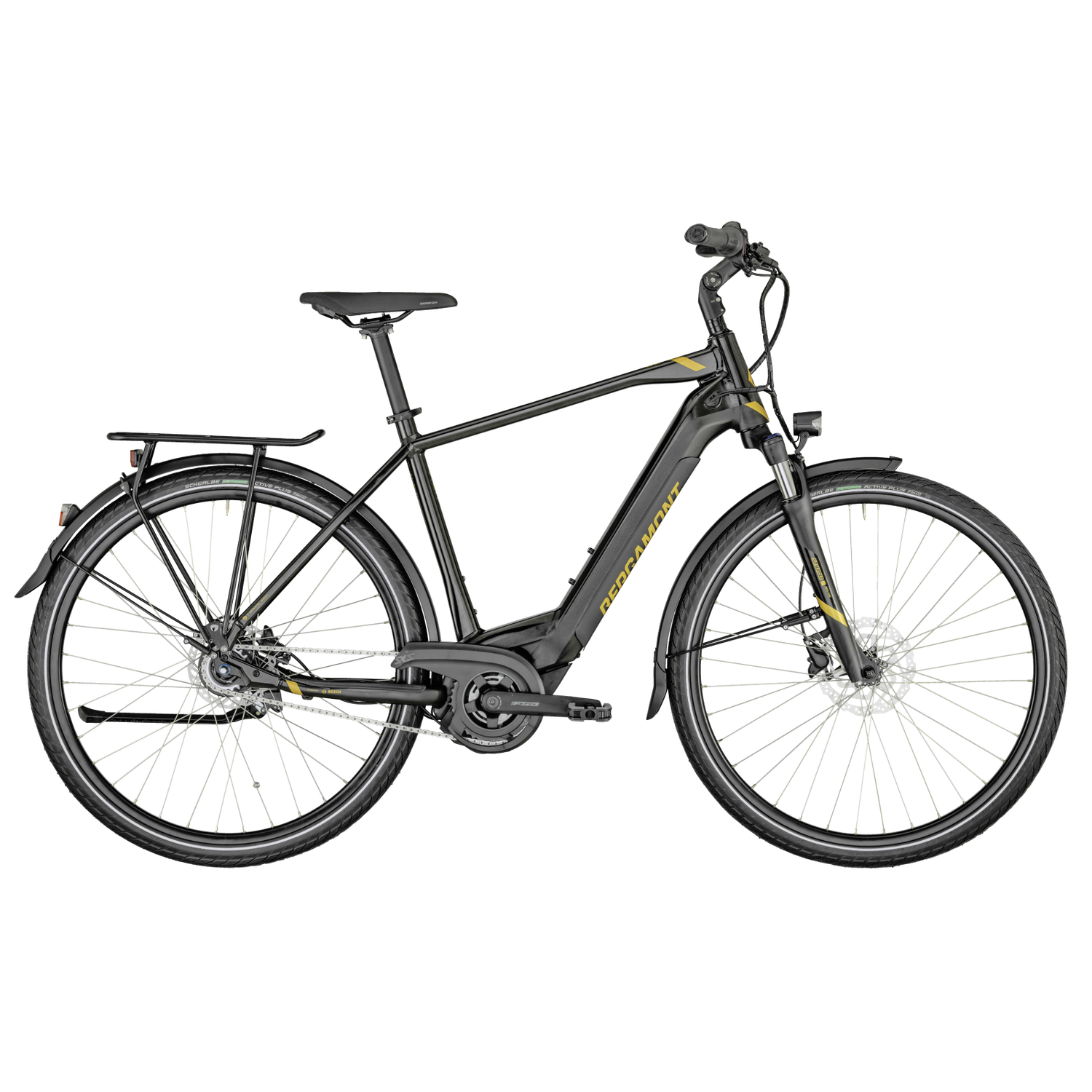

Bergamont E-Horizon N8 CB 500 Gent

Battery

Bosch 36 V Li Ion, 500 Wh, PowerTube

Battery capacity (Wh)

500

Brakes

Shimano BR-MT200, hydraulic disc brake, SM-RT10/SM-RT60C rotor: 180/160 mm

Brake lever

Shimano BL-MT200, hydraulic disc brake

Display

Bosch Purion

Color

black gold dust/gold (shiny/matt)

Rims

Ryde Rival 23, Disc, eye

Front light

Herrmans H-Black MR4, LED, E-Bike Version

Fork

Suntour NEX E25, 63 mm

Fork travel (mm)

63

Fork installation height (mm)

469

Fork pre-bending (mm)

50

Porter

Racktime / BGM Trekking Pro, integrated mudguard mount

Handles

BGM Comfort, Ergo, Double Density, Screw Grips

Gears

8

Bottom bracket

Bosch, Isis

Category

E-Horizon

Chain

KMC Z1eHX Wide EPT

Chain guard

SKS Chainbooster

Chainstay length (mm)

473

Crank length (mm)

170

crank set

FSA CK-200, 38t

Handlebar

BGM Pro, riser handlebar, curvation: 15°, height: 5 mm

Handlebar width (mm)

660

Engine

Bosch Drive Unit Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h

Hubs

Shimano, Centerlock, Disc, Quick Release / Shimano Nexus, SG-C6001-8, coaster brake, 5-bolt, Disc

Pedals

Trekking aluminum

Wheel size

28

Frame

28", ultra lite AL-6061 tube set, PowerTube battery

Frame height

60 cm

Tires

Schwalbe Energizer Active Plus, Reflex Strips, 47-622

Rear light

Herrmans H-Trace E, LED

saddle

Selle Royal Essenza Plus, gent

Seat post

BGM Pro

Shift lever

Shimano Nexus, SL-C6000, 8-speed, rotary handle

Guard plate

SKS, with stainless steel struts

Spokes

Sapim Leader

Tax rate

FSA NO.57SC-1, A-Headset, semi-integrated, Tapered

Stand

Atran

Tread bearing lowering (mm)

-60

Stem

BGM Pro, adjustable, 17°-25°

Fork length (mm)

85

Gear ring

Shimano, 20t

Permissible total weight (kg)

140

2021

Head tube length (mm)

190

Seat tube length (mm)

575

Manufacturer

Bergamont

Wheelbase (mm)

1139

Seat tube angle (degrees)

72

Top tube length (mm)

625

Overhead height (mm)

874

Stack (mm)

667

Reach (mm)

408

Head tube angle (degrees)

71
