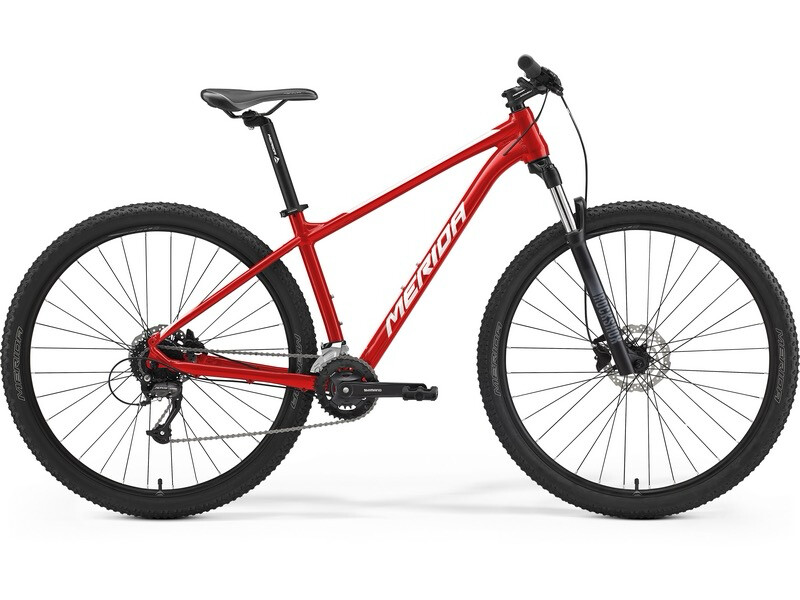

Merida Big Nine 60
€800.00
In stock
Product Details
SPECIFICATION
FRAME SIZE XL
COLOR MATT ANTHRACITE (Black)
HEADSET MERIDA M2345
GRIP MERIDA EC
DERAILLEUR (F) Shimano FD-M2020-TS [2s]
DERAILLEUR (R) Shimano RD-M370
SHIFTERS Shimano ST-EF505-2L / Shimano ST-EF505
SEAT CLAMP MERIDA COMP QR
PEDAL VP VPE-891
CHAIN KMC M99
SPOKES Black steel
weighed with 29" wheels and at frame size M, without pedals
MAX. WEIGHT 135 kg
| FRAME SIZE | S | M | L | XL | XXL |
| TYRE SIZES | 29" | 29" | 29" | 29" | 29" |
| ST SEAT TUBE [MM] | 370 | 430 | 470 | 510 | 560 |
| TT TOP TUBE [MM] | 570 | 590 | 610 | 630 | 650 |
| CS CHAIN STAY LENGTH [MM] | 440 | 440 | 440 | 440 | 440 |
| HTA HEAD TUBE ANGLE [°] | 70 | 70 | 70 | 70 | 70 |
| STA SEAT TUBE ANGLE [°] | 73 | 73 | 73 | 73 | 73 |
| BD BOTTOM BRACKED DROP [MM] | 60 | 60 | 60 | 60 | 60 |
| HT HEAD TUBE [MM] | 100 | 115 | 130 | 145 | 160 |
| FL FORK LENGTH [MM] | 506 | 506 | 506 | 506 | 506 |
| R REACH [MM] | 382 | 398 | 414 | 429 | 445 |
| S STACK [MM] | 614 | 628 | 642 | 656 | 670 |
| WB WHEEL BASE [MM] | 1069 | 1090 | 1110 | 1131 | 1152 |
| SH STAND OVER HEIGHT [MM] | 679 | 727 | 763 | 800 | 843 |
