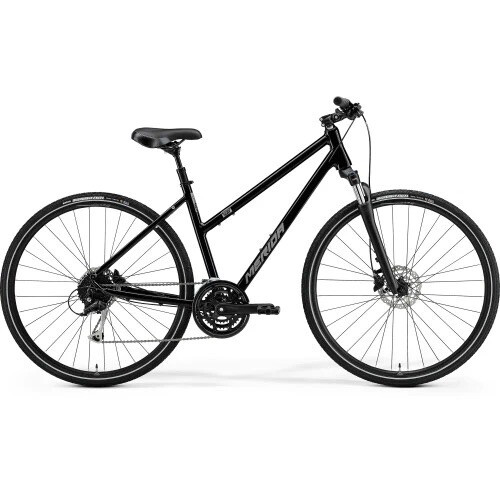

Merida Crossway 100 Ladies

For MY21 the Crossway family gets a makeover. All disc equipped Crossway models get a new TFS frame which uses a much slimmer tube profile giving the bikes a much lighter and sporty look. Cables are internally routed and colour ways are kept simple to maintain the modern appearance. Only the 10V frame remains unchanged as it is all about the lowest price. The Crossway Urban is discontinued, the MY20 Speeder revamp made it far more versatile and closed the narrow gap that the Urban occupied.



Frame size Large in stock now





SPECIFICATION

FRAME

TFS - 6061 series double butted and technoformed aluminium tubing with new 'urban' look and internal cable routing. Tapered head tube for confidence-inspiring handling. Equipped with mounts for rack, mudguards and kickstand.

FORK

Suntour NEX HLO; Coil; 63mm travel; Lockout

WHEEL SIZE

700c

RIMS

Merida Comp TK; 20mm inner rim width; 17mm profile; Material: aluminium

SPOKES

Black stainless

FRONT HUB

Shimano TX505; 100x9mm; 32 spokes; Centerlock; Quick Release

REAR HUB

Shimano TX505; 135x9mm; 32 spokes; Centerlock; Quick release

FRONT TYRE

Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshild

REAR TYRE

Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshild

GEARS

27

SHIFTERS

Shimano Altus

FRONT DERAILLEUR

Shimano M370

REAR DERAILLEUR

Shimano Alivio

CHAINSET

SAMOX, AF29-321SSS-P chainwheel with 170mm - XXS/XS/S, 175mm - M/XL length crank

CASSETTE

Shimano HG200; 11-34 teeth; 9 speed

BOTTOM BRACKET

FSA TH-7420ST Cartridge Bearing

CHAIN

KMC M99

PEDAL

VP Components, VPE-891

BRAKE LEVER

Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)

FRONT BRAKE

Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor

REAR BRAKE

Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor

GRIP

Merida Expert EC

HANDLEBAR

Merida Comp CC; aluminium; 660mm wide; 25mm rise

STEM

Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Length : 80 mm-XXS/XS/S, 90 mm-M/L, 100 mm-XL

HEAD SET

Merida M2346 Neck

SADDLE

Merida Cross Sport

SEAT POST

Merida TK; 30.9mm diameter; 10mm lay back; 40mm suspension travel

SEASON

2021

COLOUR

Black
